TonePros LPM04 Tune-o-matic Bridge and Tailpiece Set

  • Sale
  • Regular price £115.00


Upgrade your bridge and stop tailpiece with TonePros. One of the electric guitar's easiest upgrades, TonePros' locking functionality instantly improves any stock bridge system. For most guitars, it's a drop-in replacement. The TonePros LPM04 Set includes the TonePros T3BP bridge that is designed for US standard,"Nashville" style guitars made in the United States. Includes notched saddles for instant installation.

What's the easiest, most simple way to improve any electric guitar? Upgrading to top-quality hardware! Increasing sustain and improving tuning stability, TonePros' patented locking functionality makes guitars come alive with rich, vibrant harmonics, transferring more resonance from strings to hardware to guitar, causing superior overall tone. Simply put, TonePros' locking hardware makes the entire guitar ring as one solid piece.

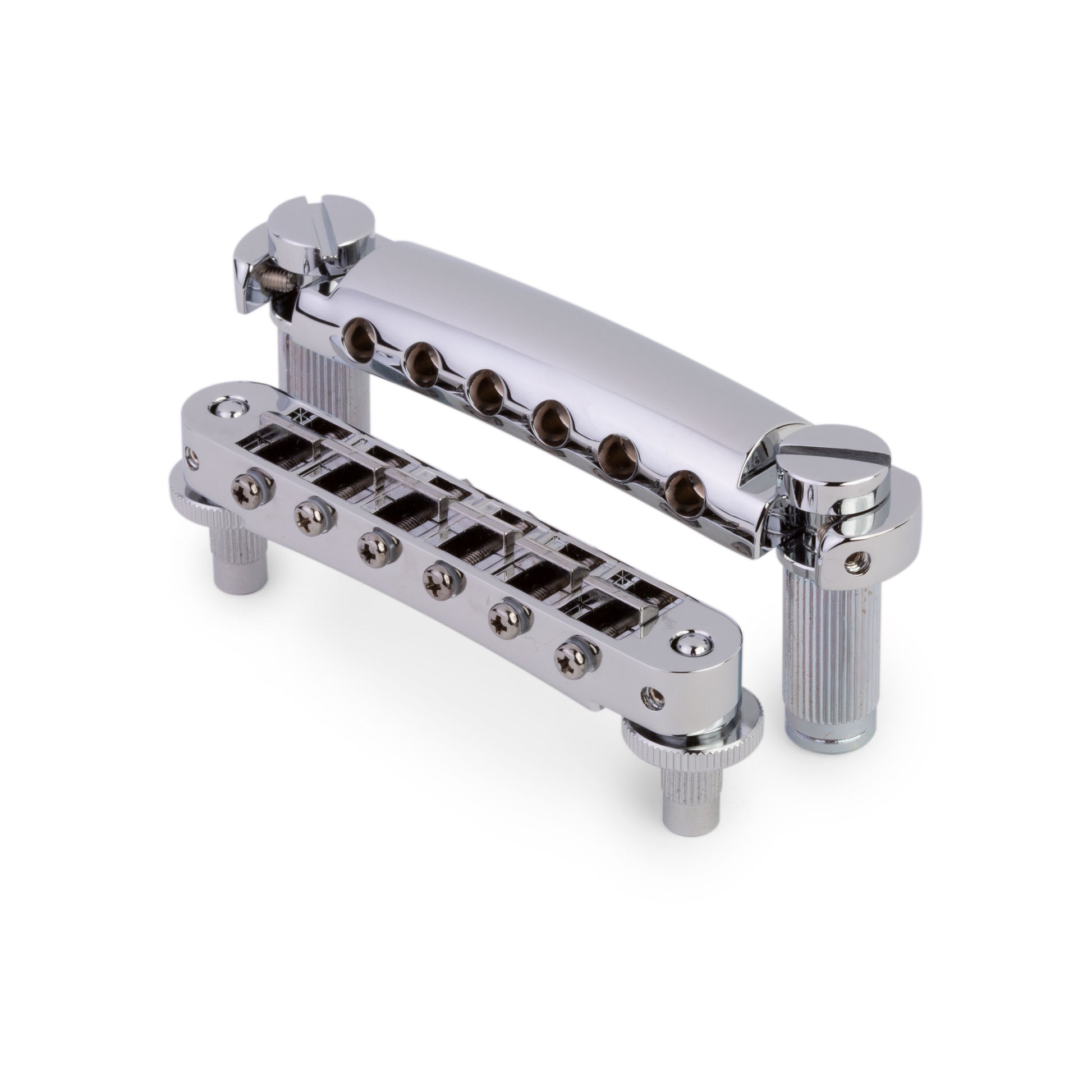

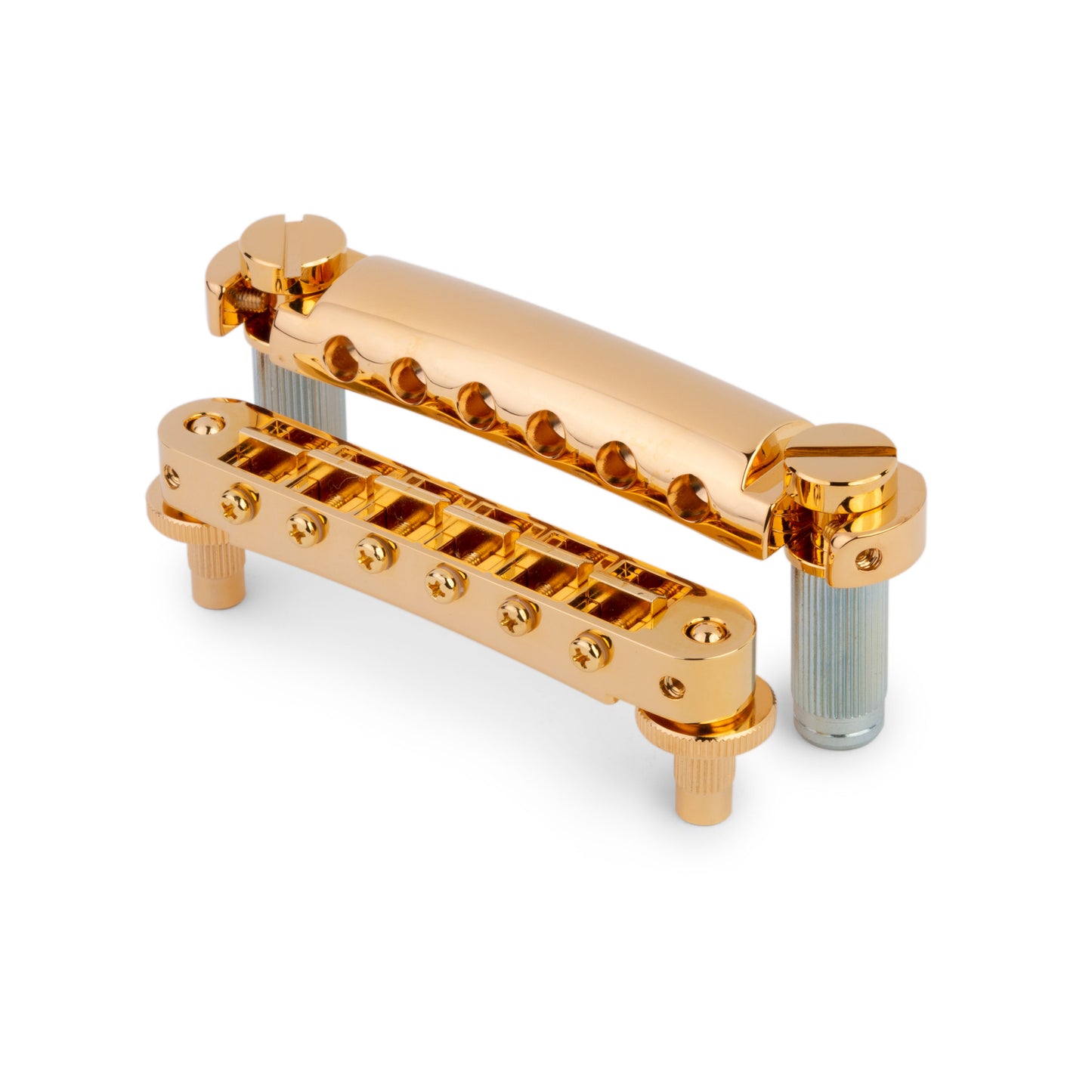

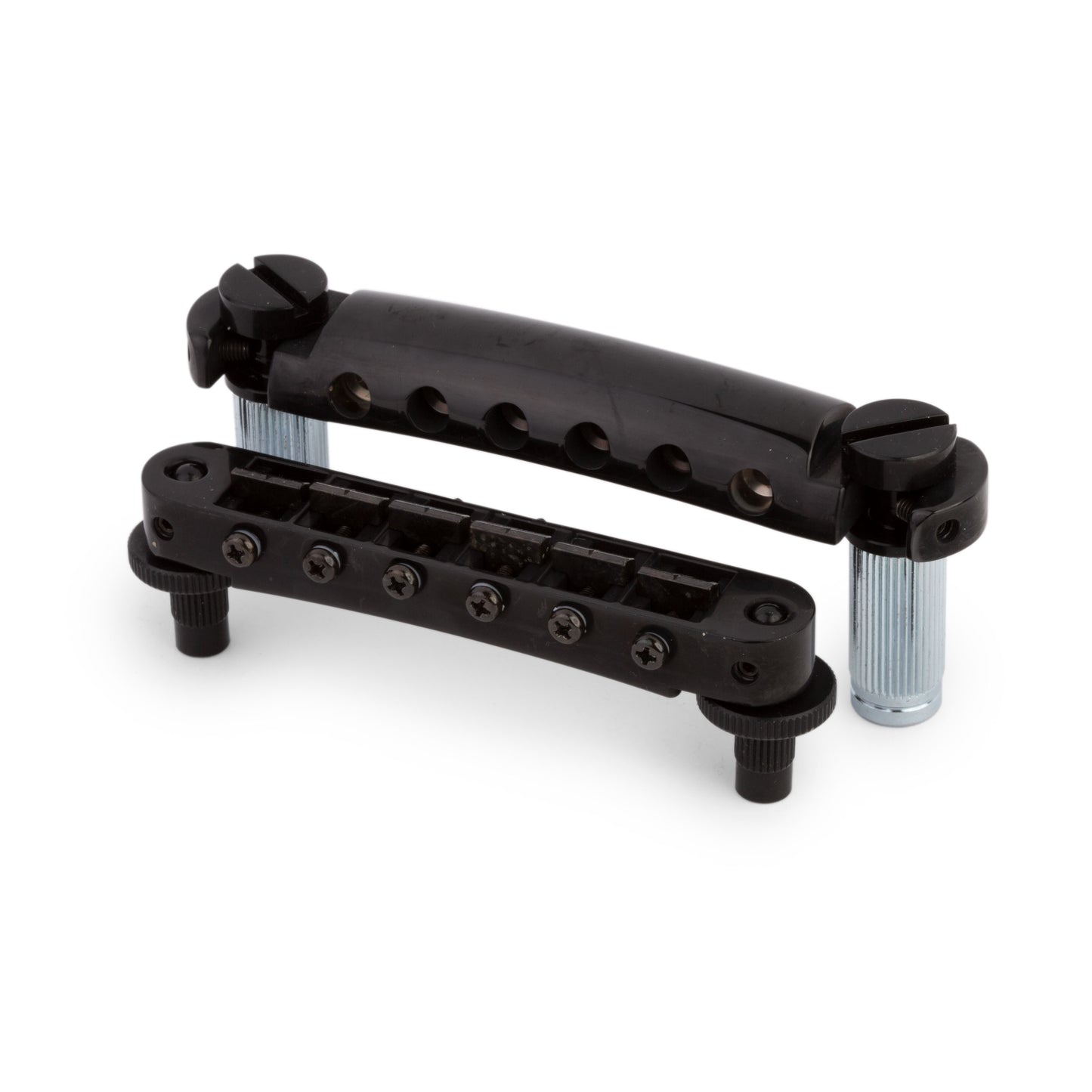

Includes the TonePros T3BP Tune-o-matic Bridge and T1Z Stop Tailpiece, posts, studs, and bushings.

TonePros T3BP Tune-o-matic Bridge specs:

  • String spread2-1/16"
    (52mm)
  • Saddle radius12"
    (304.80mm)
  • Post spacing2-29/32"
    (73.5mm)
  • Post threads10-32
TonePros T3BP Tune-o-matic Bridge features:
  • Notched saddles
  • Closed-bottom construction
  • Includes posts and bushings
  • Zamak body with brass saddles and posts for deep, rich tone
  • Adjustable with Phillips head screwdriver

T1Z Stop Tailpiece specs:

  • Stud spacing3-7/32"
    (82mm)
  • Post threads5/16-24
TonePros T1Z Stop tailpiece features:
  • Zamak body with brass studs for deep, rich tone.



About bridge & tailpiece measurements

Bridge and Tailpiece reference image

String spread is the distance between the centers of the outer strings on a bridge or tailpiece.

Saddle radius determines the arc formed by all the individual saddle heights, and is similar to the measurement of a fretboard.

Stud/post spacing is the distance between the centers of the mounting posts of a bridge or 'stop' tailpiece.
