A sustain block for a Floyd Rose tremolo made from cold rolled steel

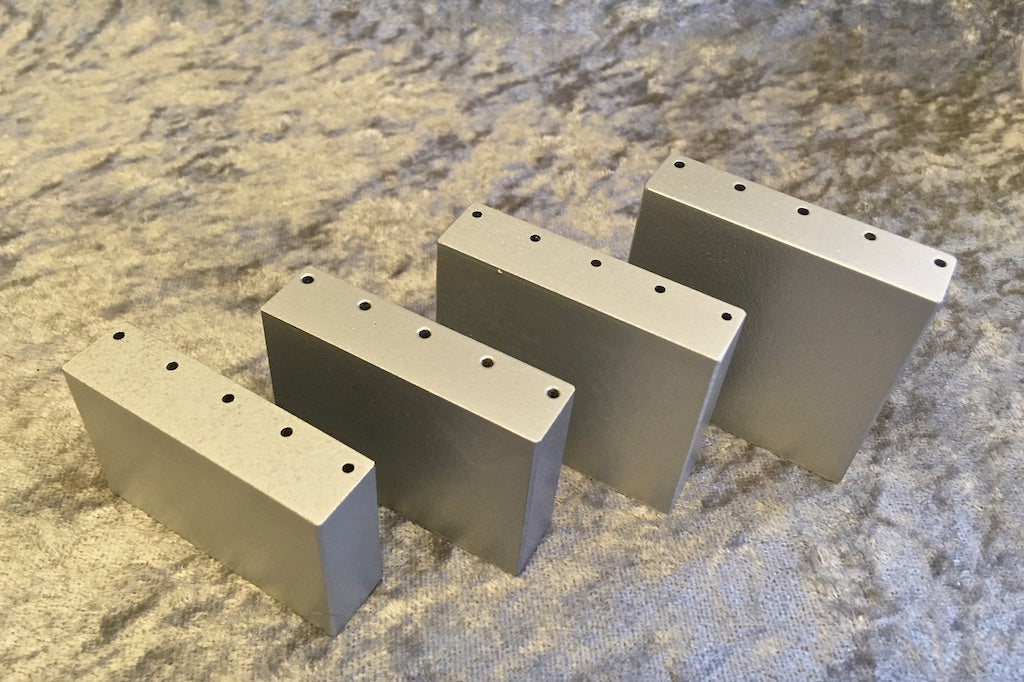

This is a 1/2" (12.7mm) thick block in the standard 50mm width with a variety of depths:
3 standard for Floyd Rose depths: 32mm, 37mm,42mm 3 Custom depths of : 35mm, 40mm and 48mm.
40mm for those times when a 42mm block is just slightly too deep and the old sustain block is hitting the back plate 35mm is again the same idea again for guitars that are just too deep with the 37mm 48mm which was one we did for when we fitted a Floyd Rose to a Les Paul style guitar that needed a deeper block due to the extra thickness of the body.
Having experimented with many older Floyd Rose vibrato units and discovered that some of the earlier ones had blocks made of steel and that these bridges had a different sound with a tight defined bass and a controlled fatness and a keen treble edge, it led us to have some blocks made from Cold Rolled Steel>
These weigh about 50% more than the original brass blocks they are designed to replace
We feel it is a superior sound , almost removing the deficiencies that a normal floyd has in it's affects on your guitars frequency response, sounding closer to a hardtail bridge to my ear.
These will fit the original Floyd Rose (FRT100) made in Germany by schaller , the FRT1000 made in Korea and any others whose screw fixings are the same as the schaller made unit
For Floyd Rose Pro you need a special block with the main mounting screws offset - we do this one too.
