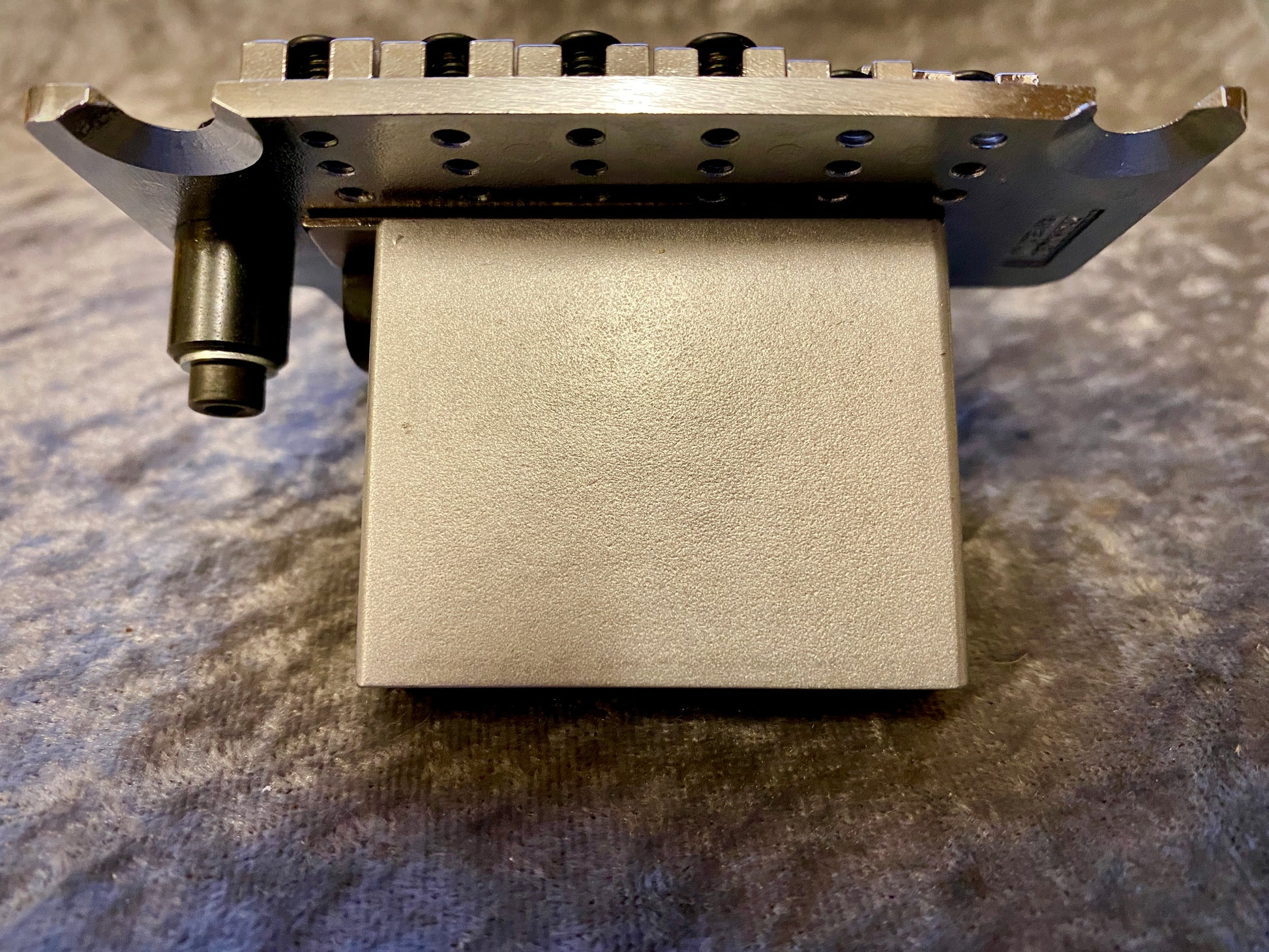

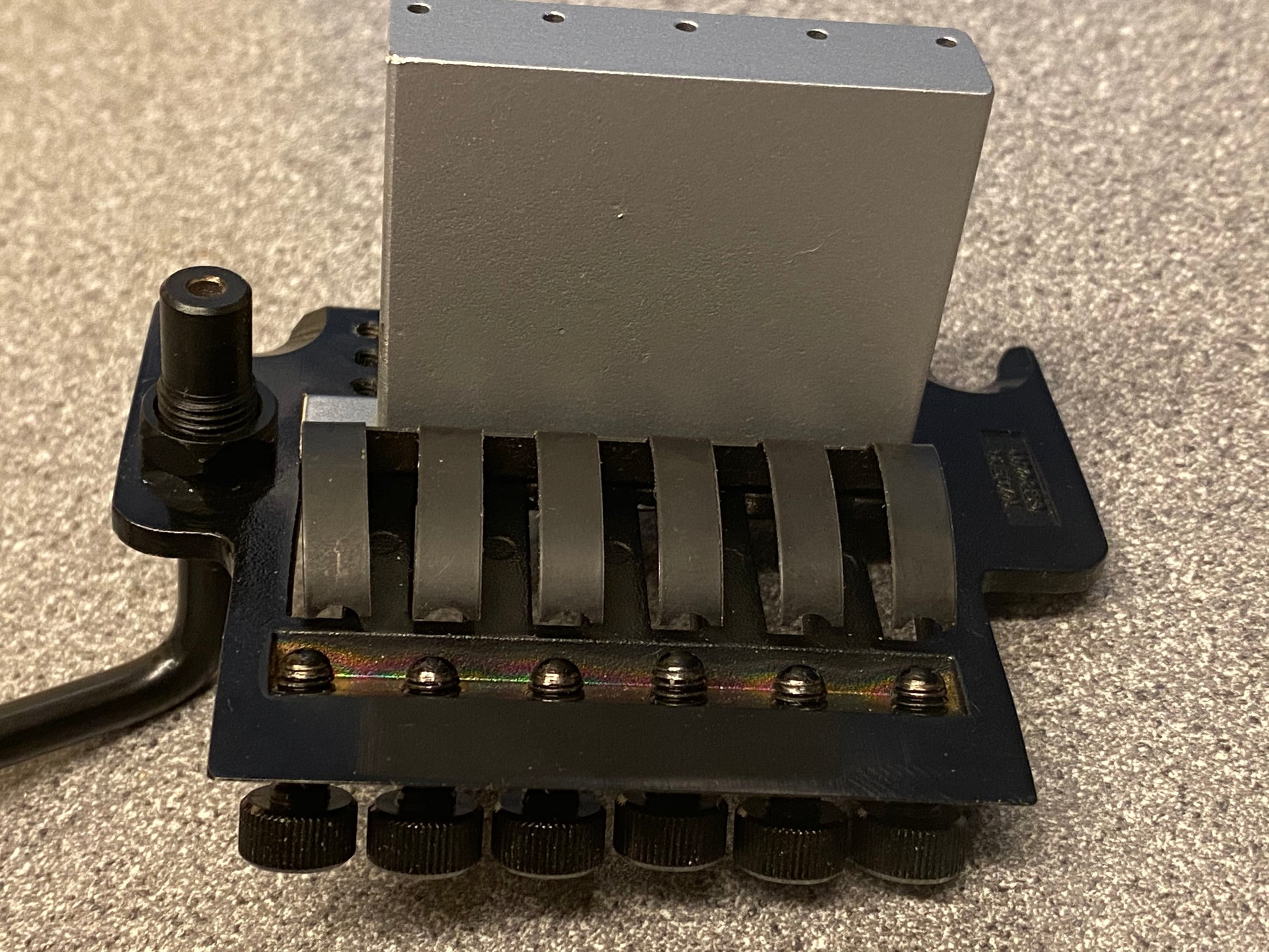

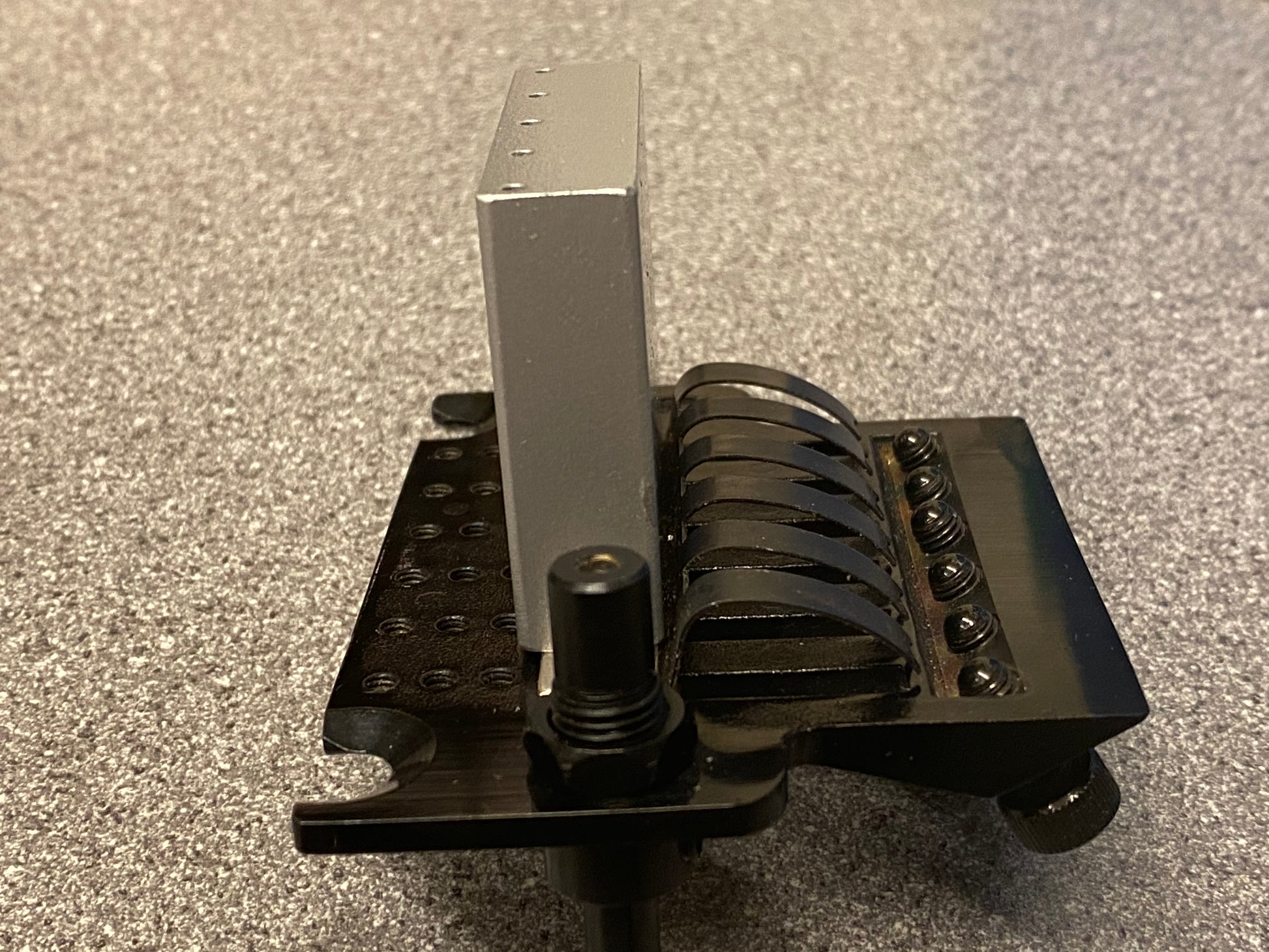

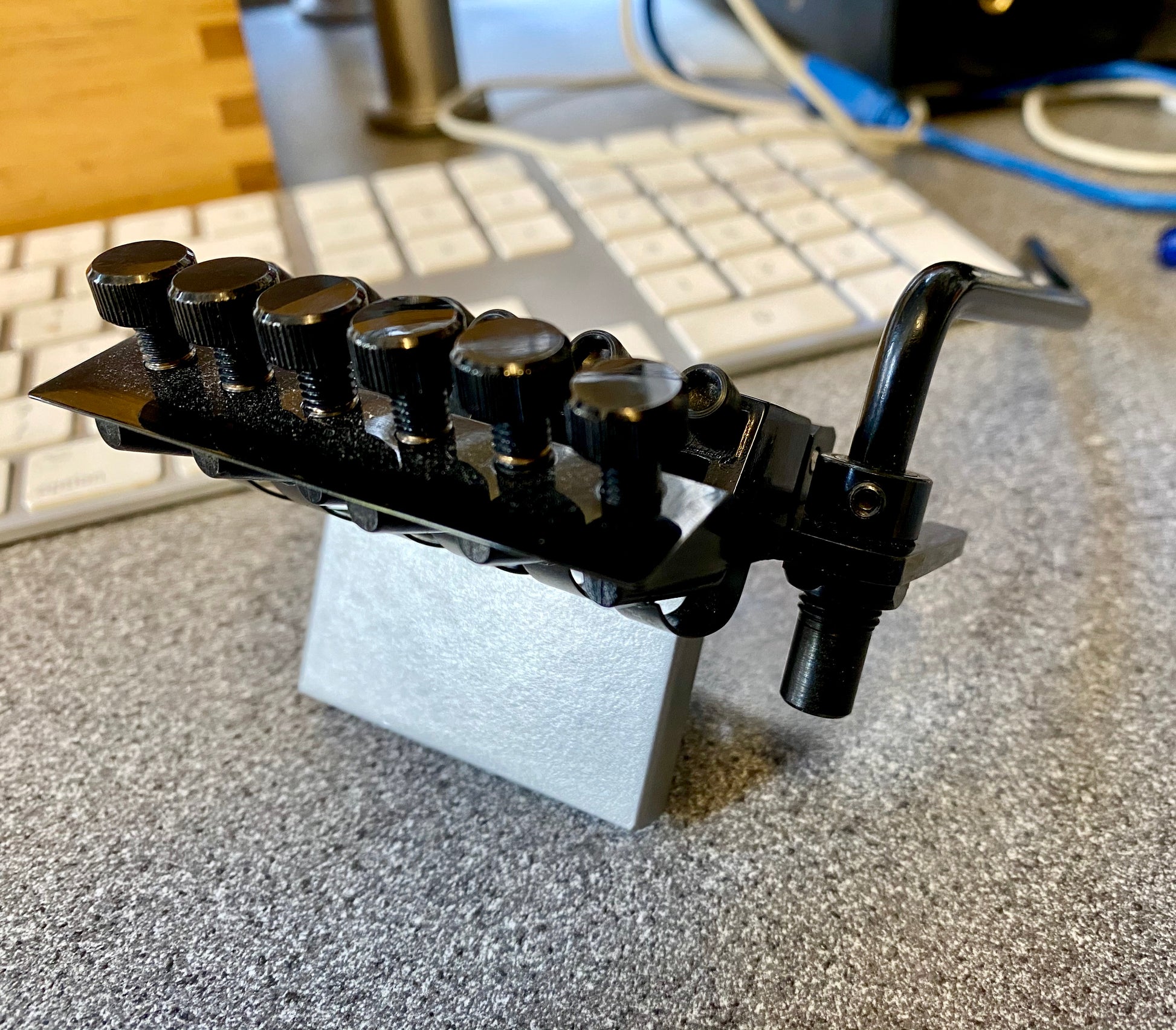

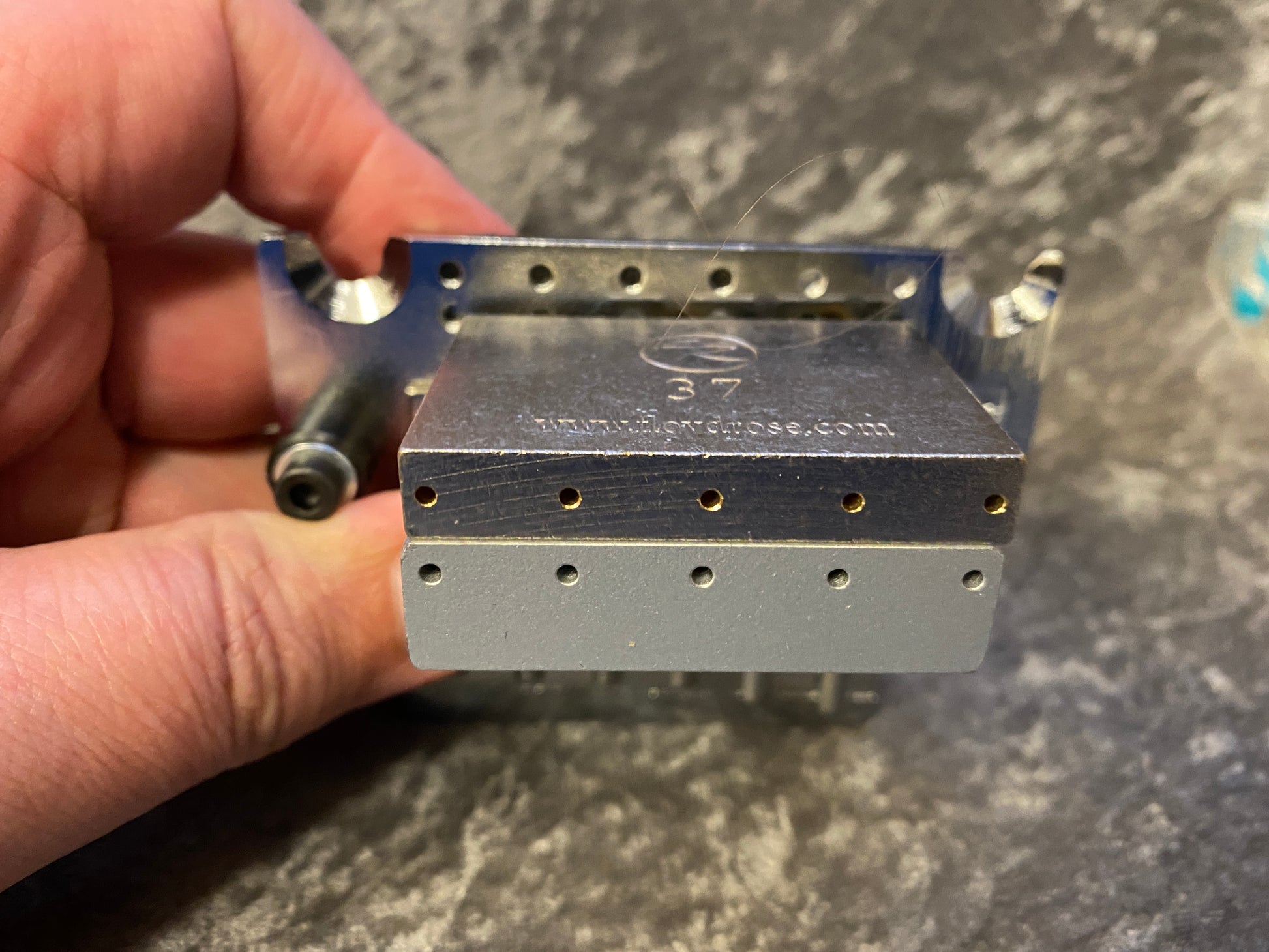

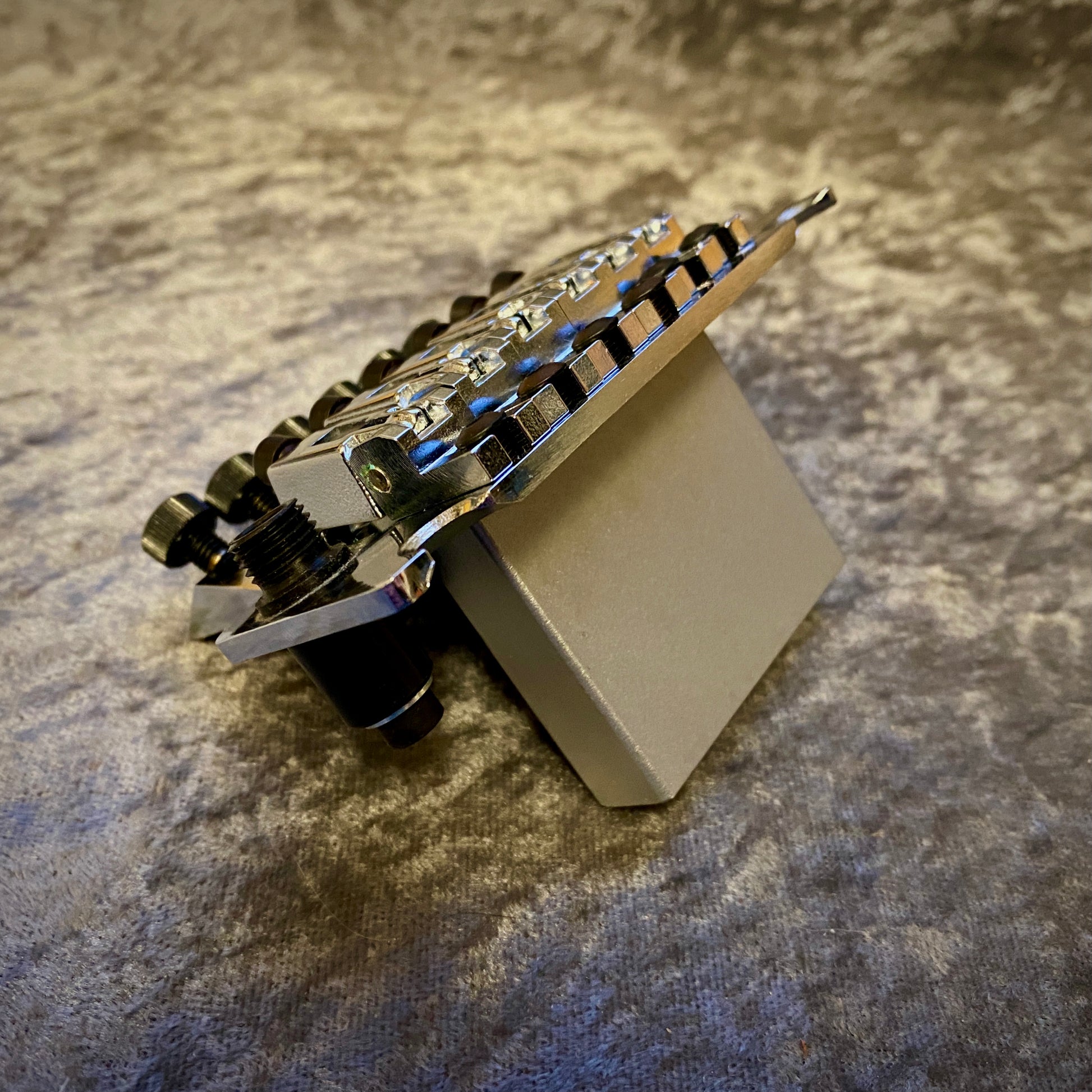

FLOYD ROSE PRO SCHALLER MADE (12.7mm) STEEL BLOCK by FATCAT (4 variants)

A special sustain block for a Floyd RosePro tremolo made from cold rolled steel

We wanted to try our Fatcat blocks on the popular but lesser seen Floyd rose Pro - the original version that was made in Germany (rather than the more recent updated version)

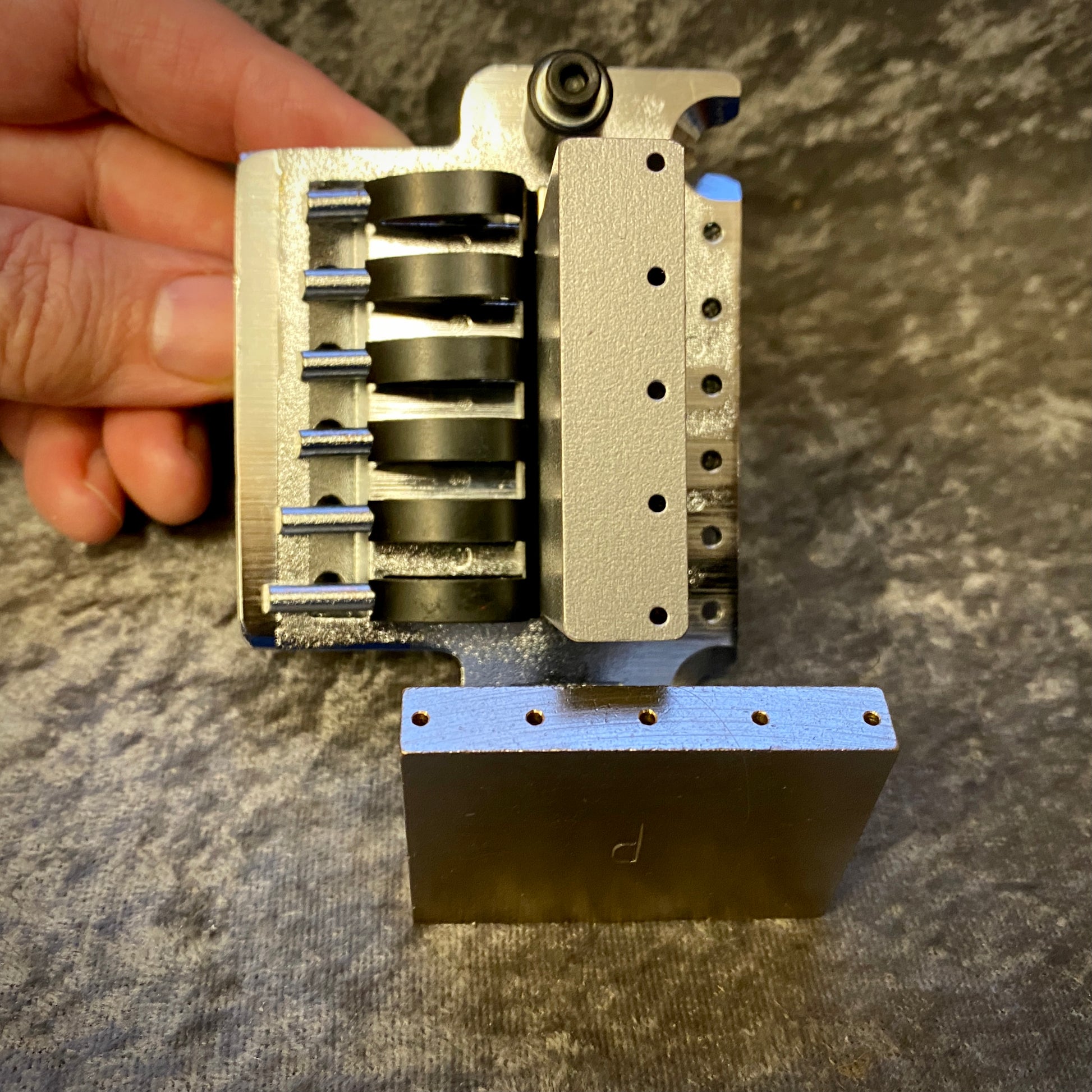

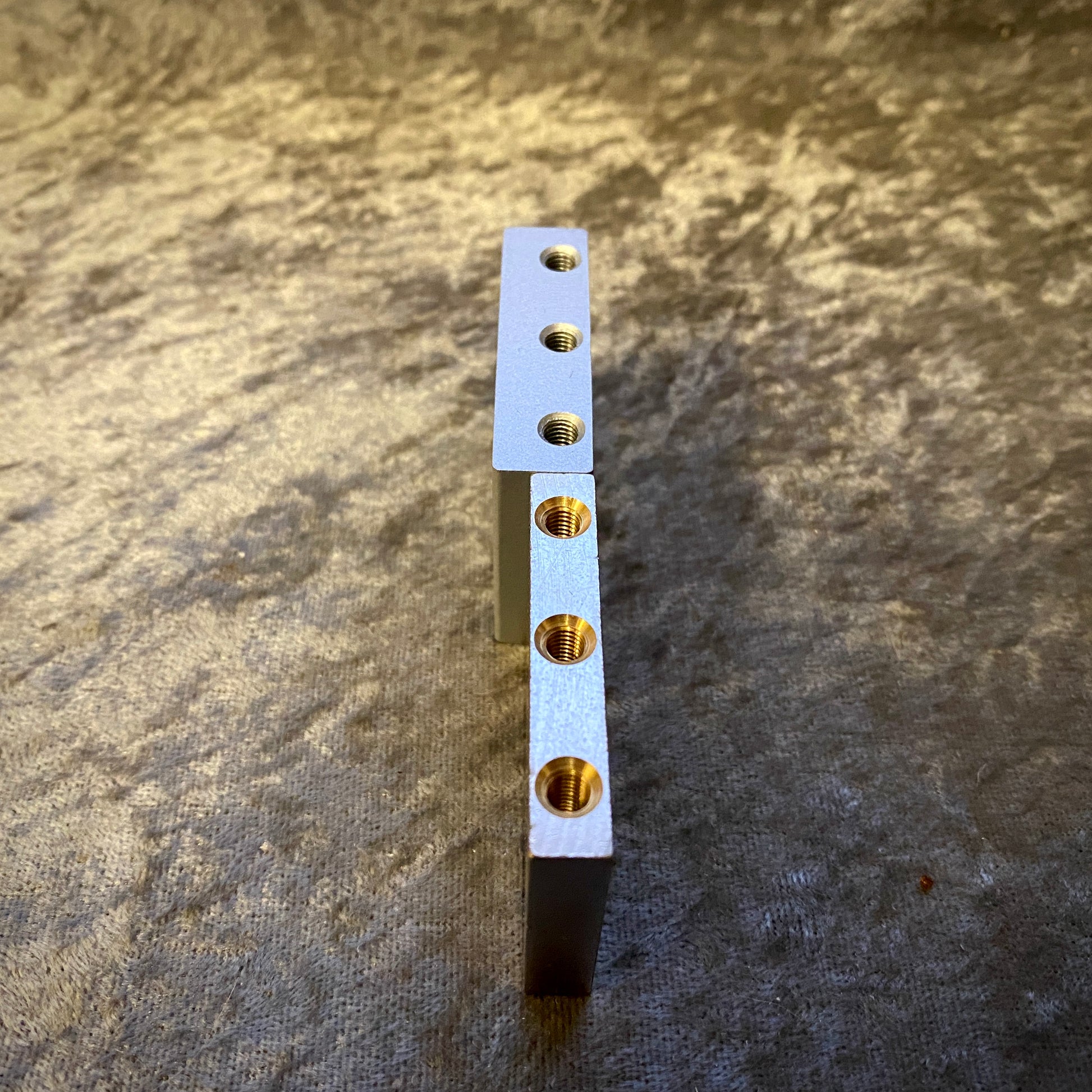

We quickly learnt that the regular Fatcat FRT block wasn't going to fit because of the layout under the Floyd Rose ProSo we had to have some special ones made with the mounting threads offset so the spring retainer was cleared



About these new blocks:

This is a 1/2" (12.7mm) thick block in the standard 50mm width with a variety of depths:

4 depths: 32mm, 35mm and 37mm and 40mm

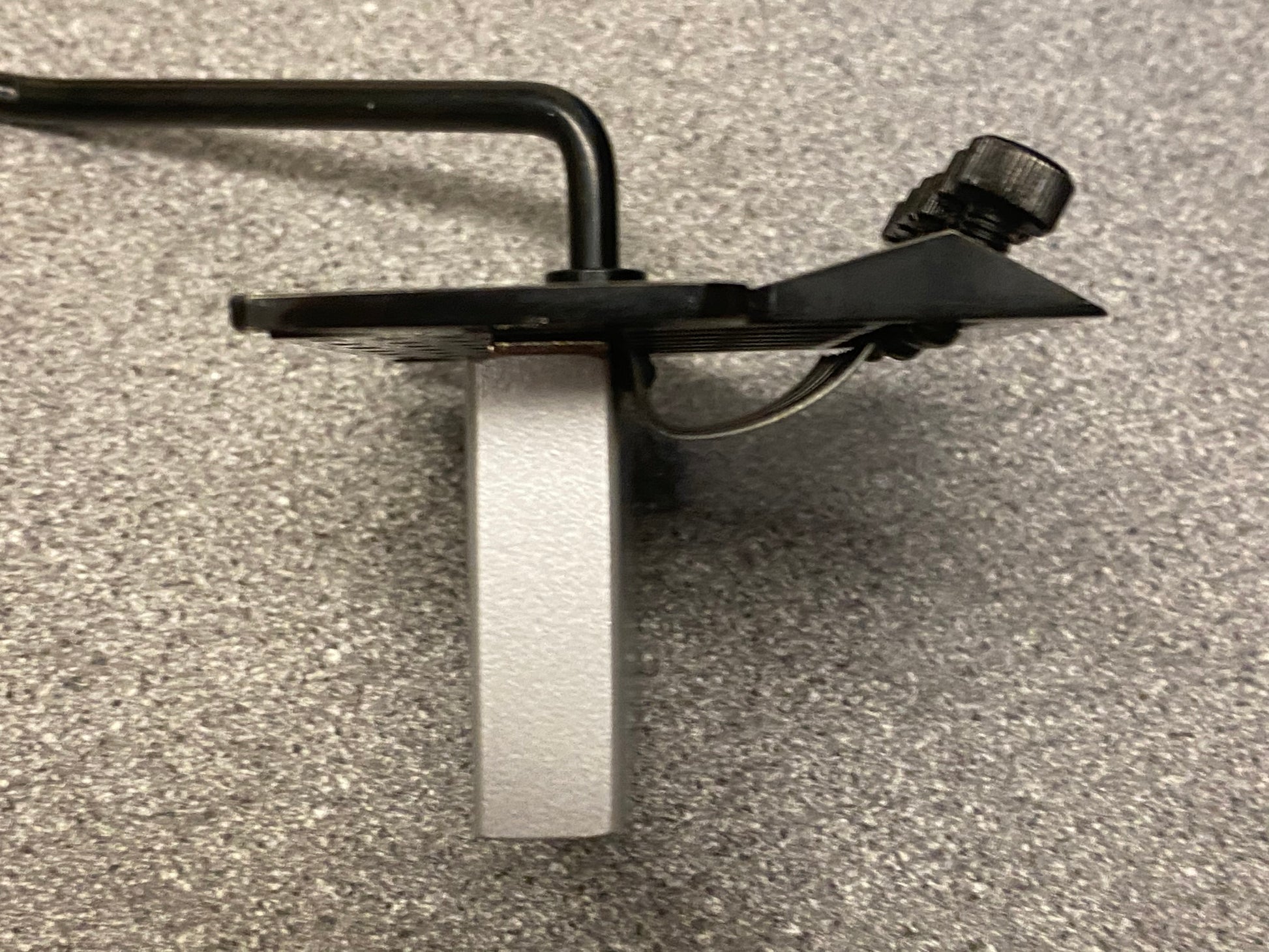

This should give plenty of choice for a tremolo that is most likely going to be either flush to the body or slightly recessed into the front.

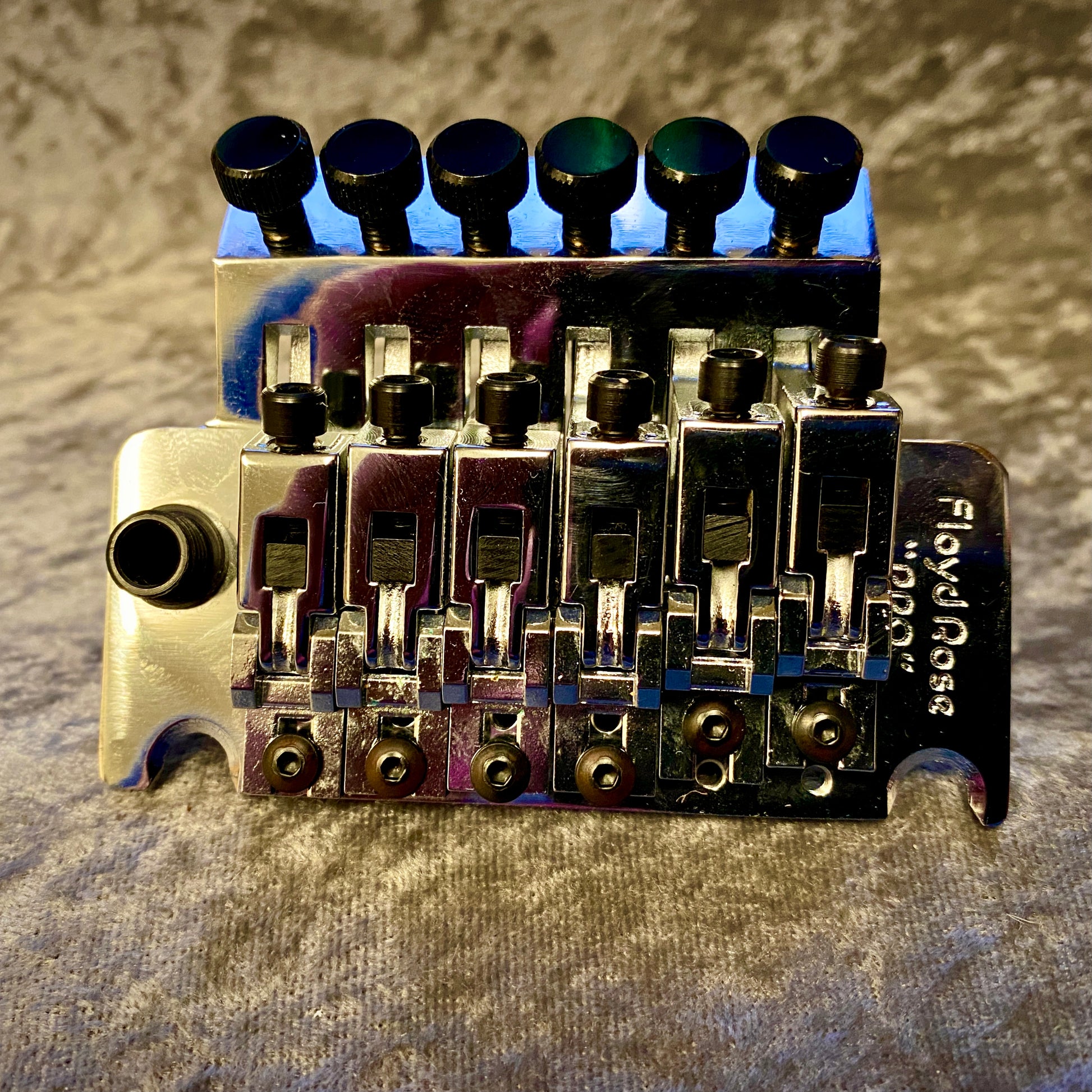

This item is for the FLOYD ROSE PRO (German made version)
The mounting holes have a spacing of 17.5mm compared to the 17mm of the newer South Korean made version.

We will most likely get onto a version for that trem too in time

Taller depths can be had by special order - speak to us if you need one

Having experimented with many older Floyd Rose vibrato units and discovered that some of the earlier ones had blocks made of steel and that these bridges had a different sound with a tight defined bass and a controlled fatness and a keen treble edge, it led us to have some blocks made from Cold Rolled Steel>

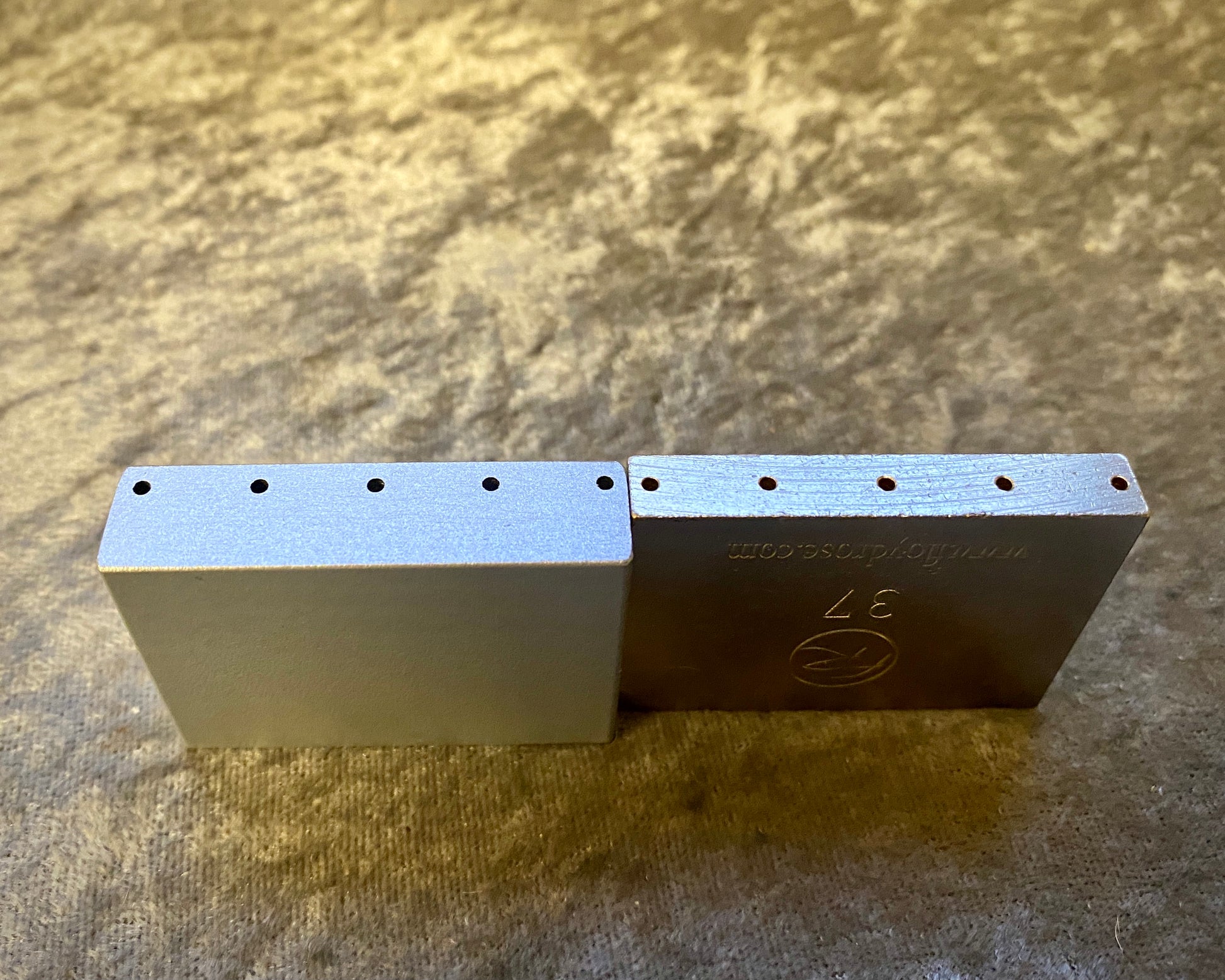

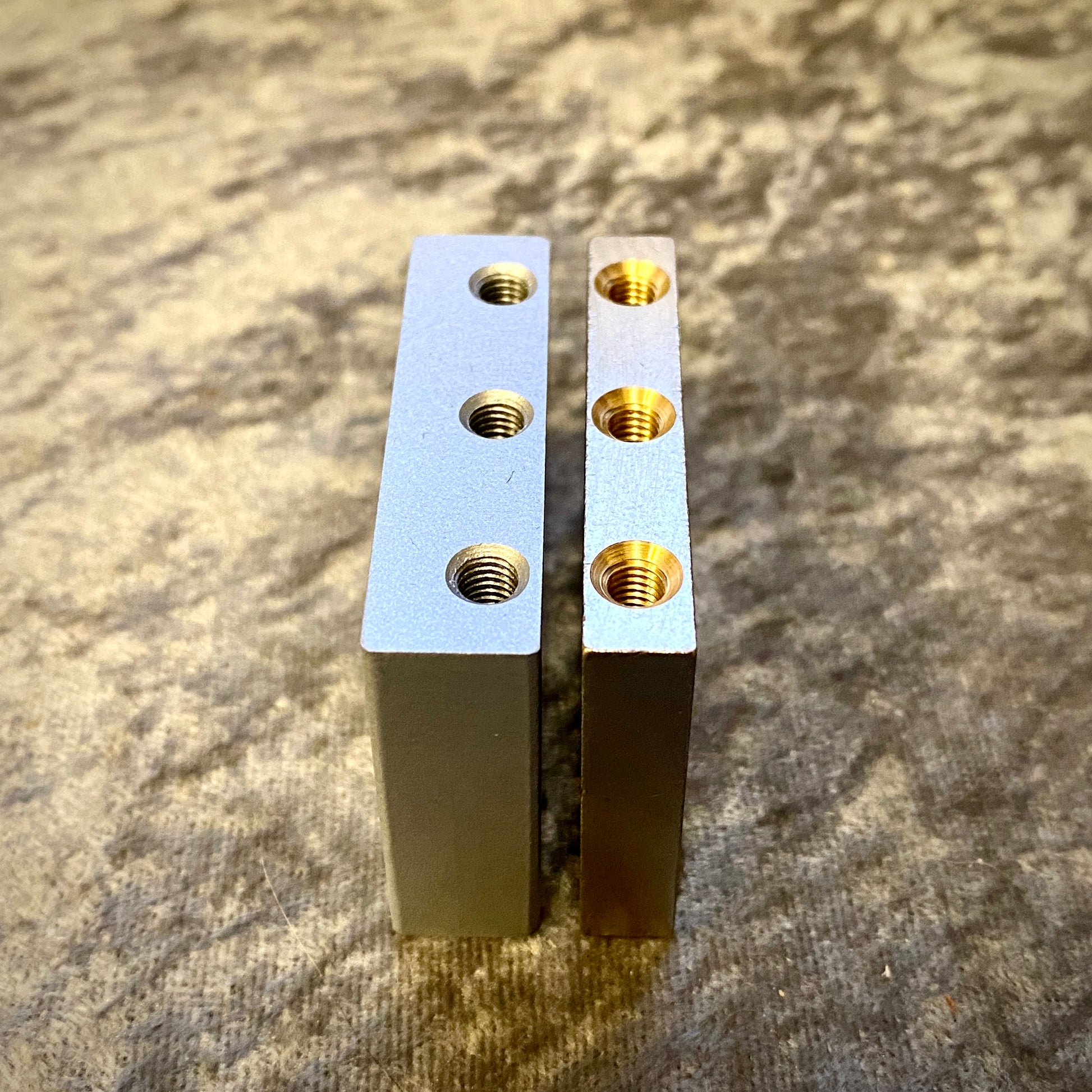

These weigh about 50% more than the original brass blocks they are designed to replace

We feel it is a superior sound , almost removing the deficiencies that a normal floyd has in it's affects on your guitars frequency response, sounding closer to a hardtail bridge to my ear.
